SPECIFICATIONS

Size: 180*190*58
Faceplate: Carbon
Gimbal Type: ALPS RDC90
Weight: 888g (without battery)
Working voltage: DC7-8.4V (NO CRSF)
Channels: up to 32 channels (depending on the receiver)
Display: IPS480*272 (800 * 480 HD IPS touch screen interface reserved – expected to be supported by openTX2.4 and above)
Simulator mode: 3.5mm standard ppm output or USB HID

FEATURES

JP5-in-1 Multi-protocol module included R9, DSM2/X, FrSKY, SFHSS, FlySky, FlySky AFHDS2A, Hubsan and more
OpenTX firmware
Voice function
Zipper Case Included
Adjustable LED Backlights
Vibration reminder function
USB-C online firmware upgrade

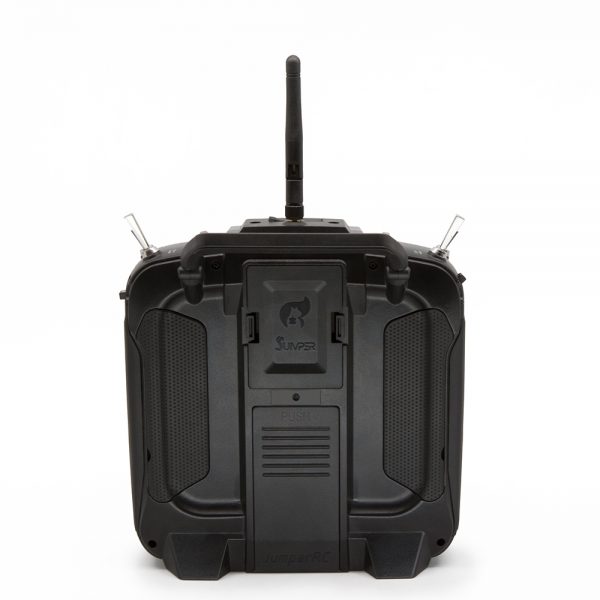

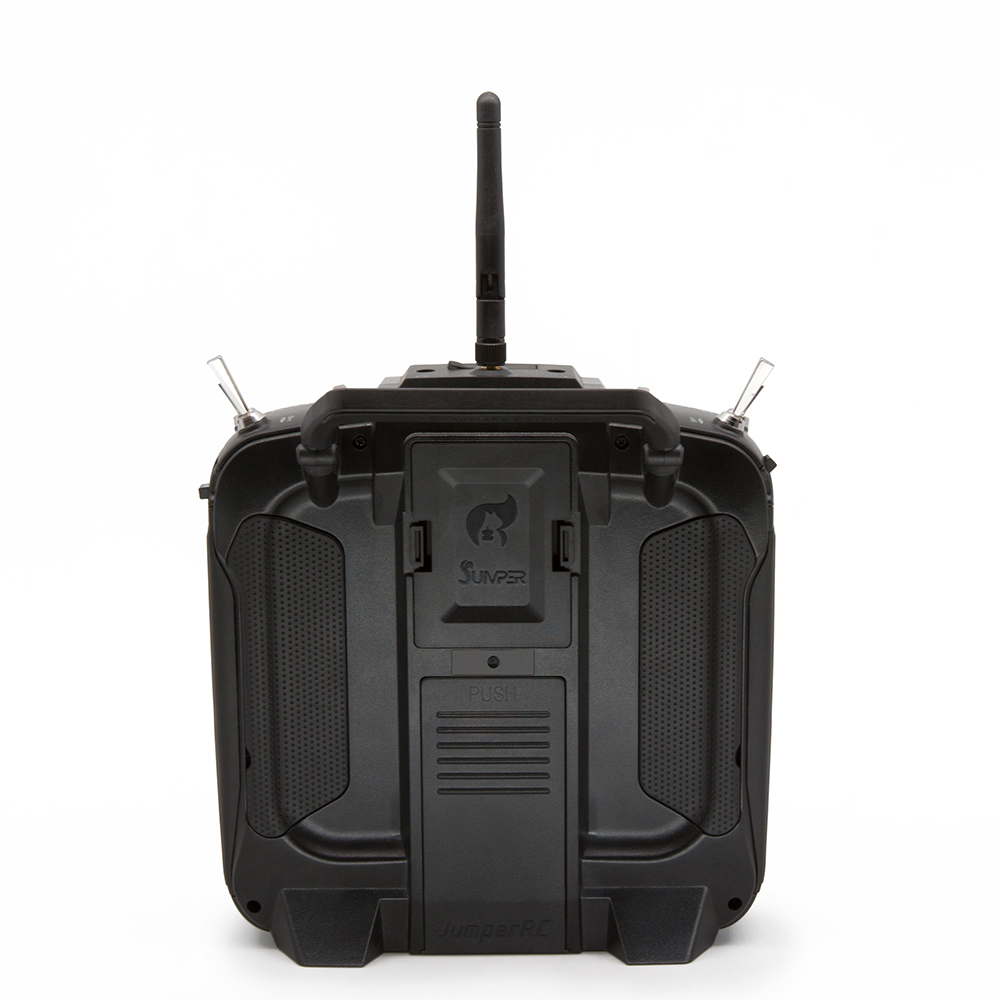

JR/FrSKY compatible module bay on rear side.
JP5IN1 module – 2.4G JP4IN1 and 915mhz / 868mhz

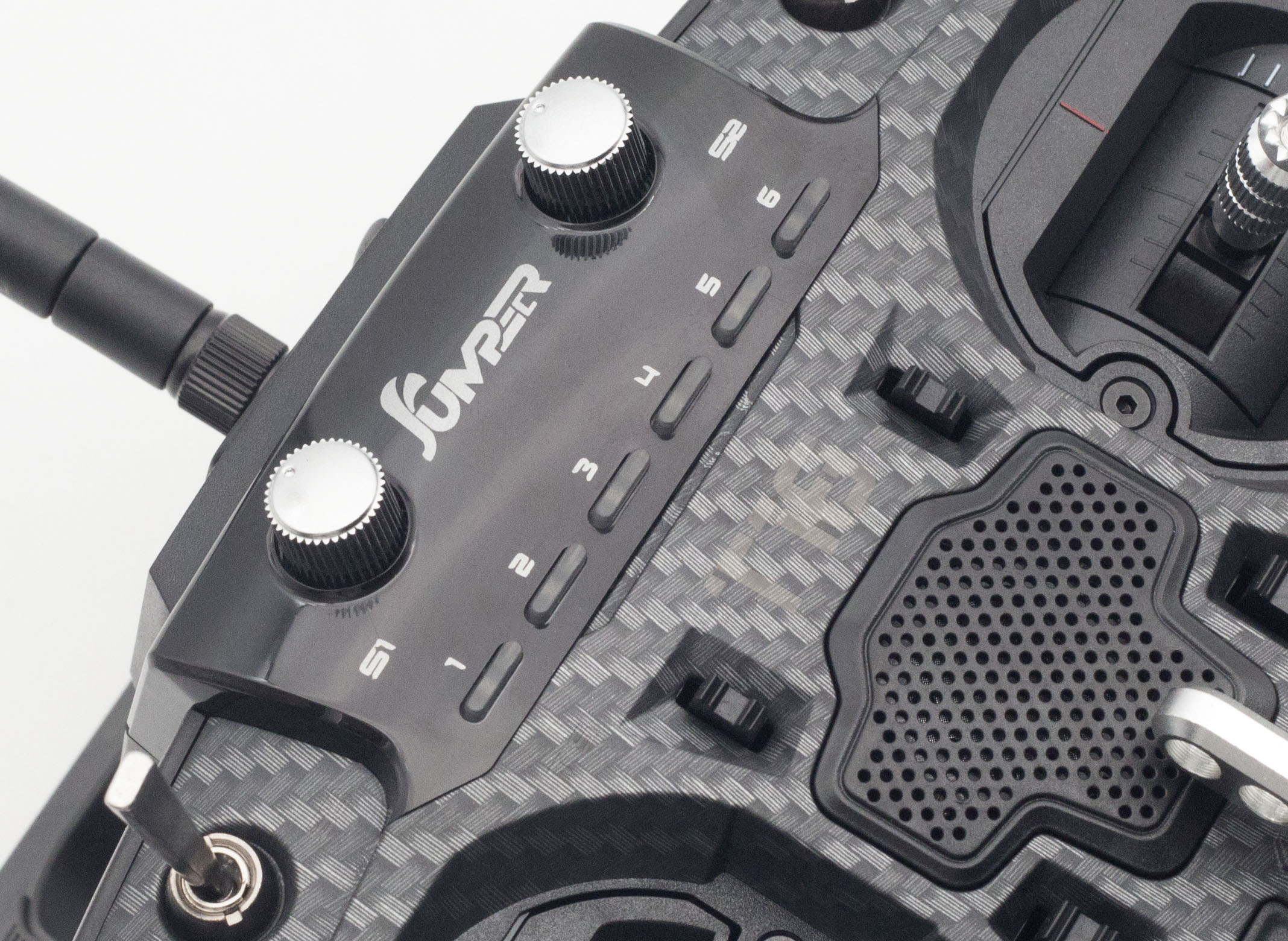

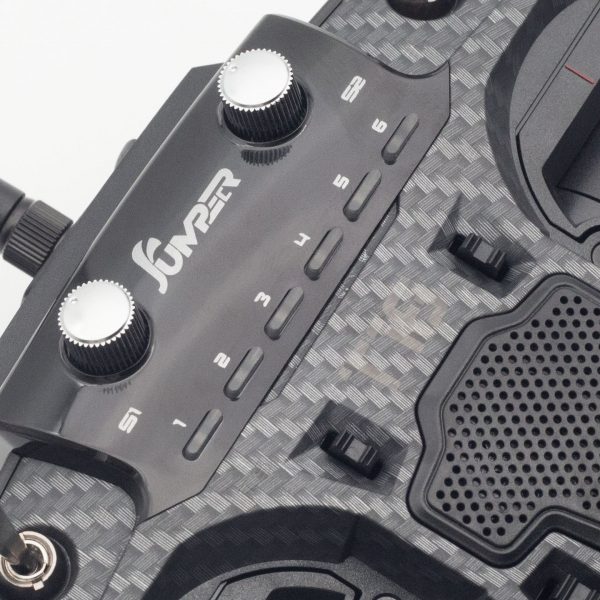

6-Flight Mode Buttons (for APM and Pixhawk flight controllers)
Support telemetry (depending on the receiver)
Up to 16 channels of output (can be extended into 32ch, depending on the receiver)
