OVERVIEW

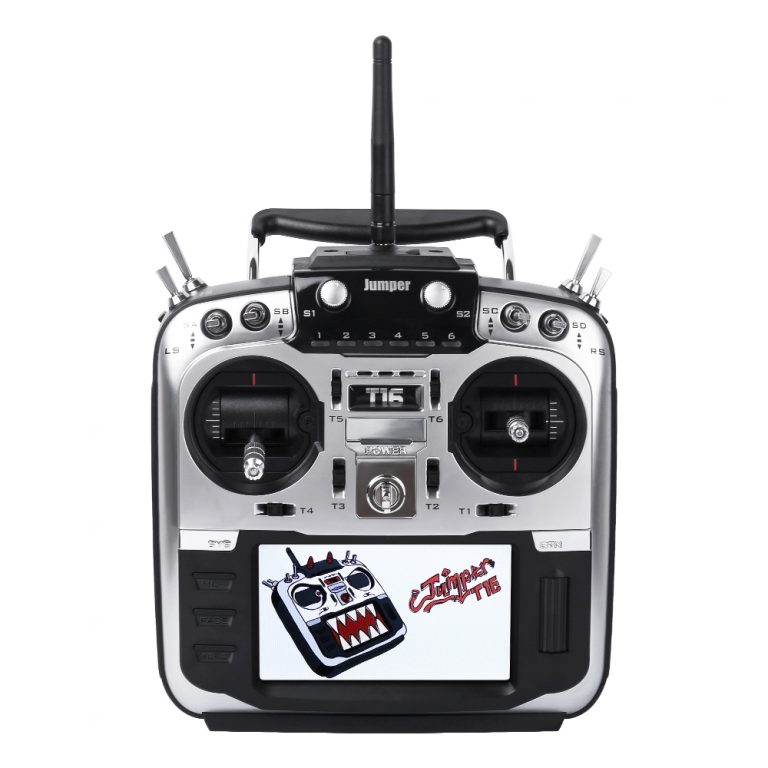

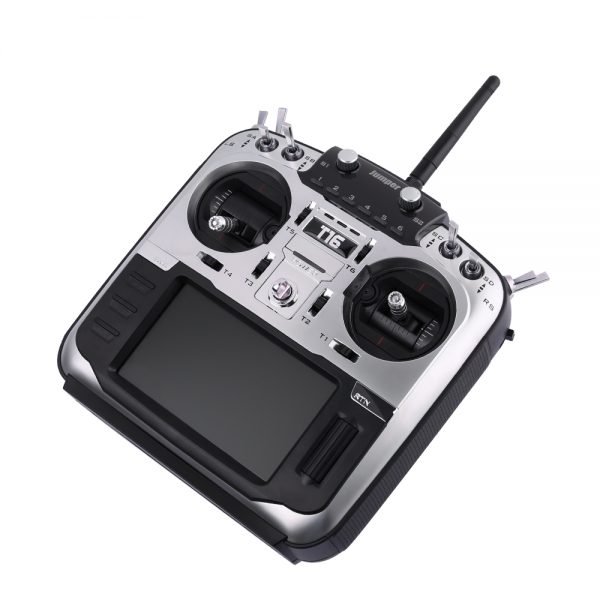

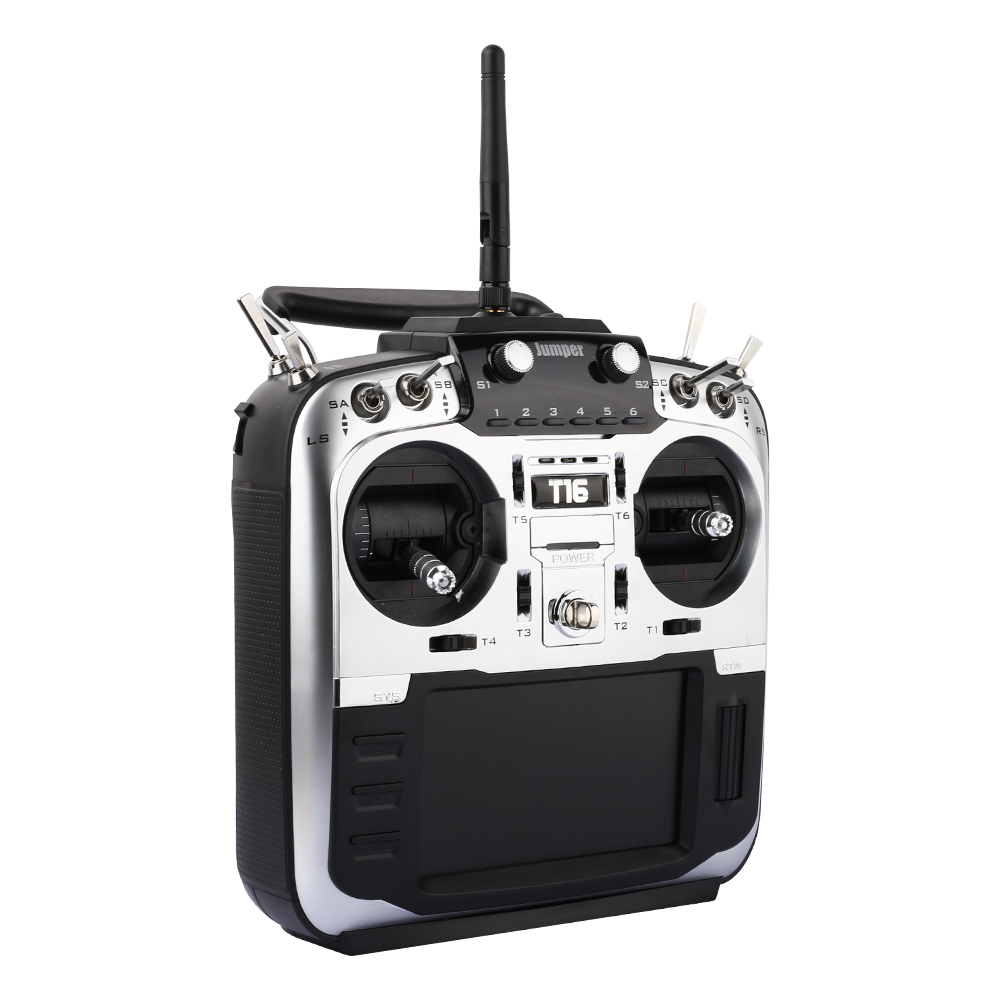

T16 Pro Hall with HALL Gimbals Open Source Multi-protocol Radio Transmitter JumperTX

Our vision and goal:

To create the most affordable, high-performance open source remote control on the market today. The T16 truly is the ONE radio to rule them all. With angle adjustable ultra-smooth dual bearing precision gimbals, large 4.3” display, more than ample input controls, integrated 6 position buttons for professional flight control systems, JR module bay supporting TBS Crossfire modules and many more features the T16 is a remarkable offering at this price point.

Power to the people:
Never wanting to stand still the team at Jumper looked for a way to put the maxim amount of radio in the users hands for the minimum amount of cost. With advancements in technology and materials cost there really is no reason for a high end radio to have a high end price tag and Jumper have not only proven this point but they have smashed expectations, the T16 changes everything!

Ergonomics and functionality:
The T16 has undergone extensive testing for comfort and functionality, we have taken all the feedback from our previous products along with the feedback from the community in what they expected from a radio and rolled it all in to the T16.

SPECIFICATIONS

· STM32F429BIT6 MCU

· Industrial grade 4.3 inch 480*272 outdoor readable color screen

· Compatible with JumperTX (An independent fork of OpenTX)

· Wheel menu button

Gimbal Type: HALL SENSOR

· Multi-protocol transmitter module with TBS CRSF support

· Removable battery

· Supports Telemetry

· Memory 16M (can be expanded by Micro SD card)

· Voice function

· Vibration reminder function

· Standard JR module slot

· 6-Flight Mode Buttons (for APM and Pixhawk flight controllers)

· Two-color LED status display

FEATURES

Size: 180*190*58

Weight: 798g (with 2 x 18650 batteries installed)

Voltage: DC7-8.4V

Battery: 2 x 18650 (tray supplied) or 2S lipo (batteries not included)

Current: 350mah (NO CRSF)

Channel: 16ch

Micro SD Slot: Card Included
